Description:

Take your ride to the next level with the Falcon-A Full Suspension E-Bike, built for speed, comfort, and ultimate off-road performance. Featuring a powerful motor, long-range battery, and full suspension system, this electric mountain bike is designed to handle rugged trails, steep climbs, and high-speed descents with ease. Its fat tires provide superior traction, while the advanced suspension absorbs shocks for a smooth and controlled ride on any terrain. Whether you’re conquering mountains or cruising through the city, the Falcon-A delivers power, precision, and adventure in every ride.



Key Features:

  •  High-Powered Electric Motor for Maximum Speed & Torque

  •  Full Suspension System for Superior Comfort & Control

  •  Long-Range Battery – Ride Longer Without Limits

  •  Fat Tires for Enhanced Grip on Dirt, Rocks, Snow & Sand

  •  Ideal for Mountain Trails, Off-Road Rides & Urban Exploration



Specs:



E-bike System

Battery

48V/15Ah, 720Wh Lithium-ion battery with LG 21700 cells

Motor

BAFANG Mid-drive, 500W rated power, 750W peak power, 48V, 130 Nm of torque, based on CAN6.3 protocol

Range

75 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.

Display

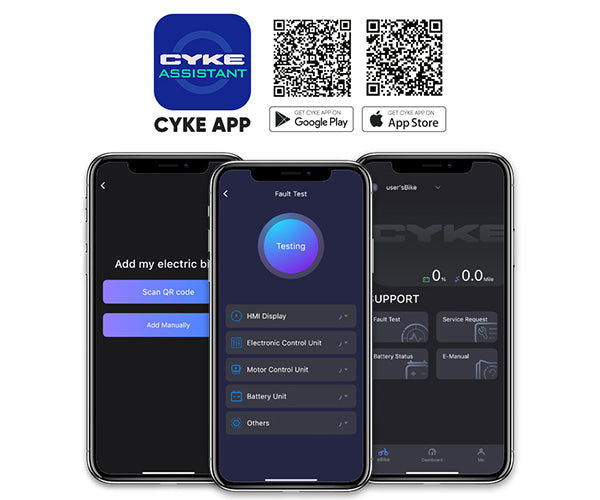

LCD display with Bluetooth, 4" TFT color screen, IP66

Charger

Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed

Charging Time

Approx. 6-8 hours

Sensor

Torque sensor

Max Speed

28 MPH both in pedal-assist and throttle modes

Pedal Assist Modes

5 Levels

Frameset

Frame

Aluminum alloy, 17"/19"Size, 150mm travel

Fork

ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout

Shock

ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim

Aluminum ring, 12G 36H AV, 596*41mm

Front Tire

Maxxis HIGH ROLLER II, 27.5x3.0"

Rear Tire

Maxxis HIGH ROLLER II, 27.5x3.0"

Front Hub

Aluminum alloy, disc brake, 12G 36H, ID15x150mm

Rear Hub

Aluminum alloy, disc brake, 12G 36H, ID12*197mm

Spoke

Black stainless, 12G, 247mm

Drivetrain

Shifter

SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™

Rear Derailleur

SRAM RD-X5, 9 speed, EXACT ACTUATION™

Cassette

SRAM CS-PG-950, 9 speed

Crank arm

BAFANG 170mm length

Chainring

BAFANG MM G520, 34T

Chain

KMC E10S for e-bikes

Pedal

Aluminum alloy

Components

Saddle

VELO, boron steel, 160mm width

Seat Post

Aluminum alloy, Ø31.6*264mm

Stem

Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm

Handlebar

Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm

Grips

VELO, trail grip

Brakes

TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor

Brake rotor

TEKTRO HD-E730, 3T, 203x2mm

Kickstand

Side Kickstand

Weight

Weight Limit

300 lbs

Net Weight

55 lbs

Gross Weight

86 lbs

Size

Bike Size

82.84 x 30.9 x 45.79 in

Box Dimension

66.54 x 33.9 x 11 in



Ride Beyond Limits – Get the Falcon-A Full Suspension E-Bike Today!

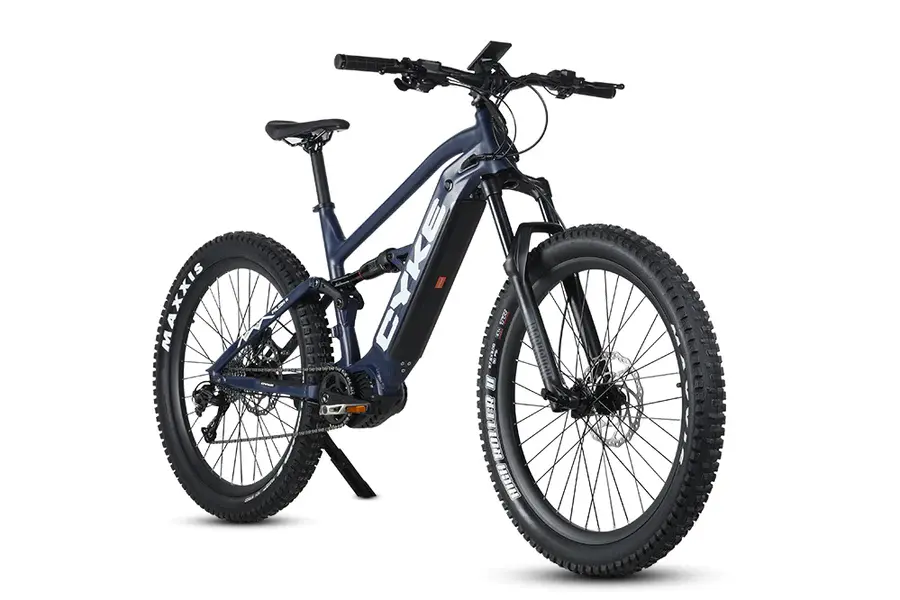

Falcon-A Full Suspension E-Bike – High-Performance Electric Mountain Bike

$3,399.00 Regular Price
$3,059.10Sale Price
