Description:

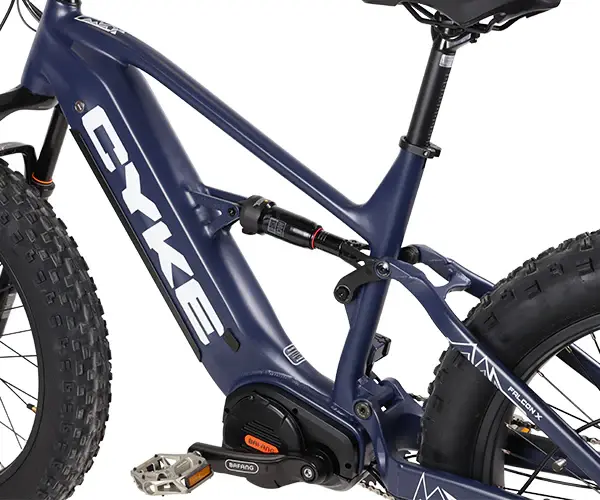

Dominate any terrain with the Falcon-X Full Suspension E-Bike, engineered for power, comfort, and superior performance. Featuring a high-torque motor, long-range battery, and advanced full suspension, this electric mountain bike is built to handle rugged trails, steep inclines, and high-speed descents with ease. The fat tires provide maximum traction, while the durable frame and shock-absorbing suspension ensure a smooth and controlled ride in any environment. Whether you’re hitting mountain trails or cruising through the city, the Falcon-X is designed for riders who demand top-tier performance.



Key Features:

  •  High-Torque Electric Motor for Maximum Power & Speed

  •  Full Suspension System – Smooth Rides on Rough Terrain

  •  Long-Lasting Battery – Ride Longer & Explore Further

  •  Fat Tires for Superior Grip on Dirt, Snow, Sand & Gravel

  •  Perfect for Off-Road Adventures, Mountain Biking & Urban Commuting



Specs:

E-bike System

Battery

48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells

Motor

BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol

Range

65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.

Display

LCD display with Bluetooth, 4" TFT color screen, IP66

Charger

Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed

Charging Time

Approx. 8-10 hours

Sensor

Torque sensor

Max Speed

28 MPH both in pedal-assist and throttle modes

Pedal Assist Modes

5 Levels

Frameset

Frame

Aluminum alloy, 17"/19"Size, 150mm travel

Fork

RST RENEGADE 26, 80-120mm travel, 32mm alloy pillar, air spring and oil damping, hydraulic lockout

Shock

ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim

Aluminum ring, 12G 36H AV, 580*98mm

Front Tire

Maxxis Minion FBF, 26x4.8", Snow tires

Rear Tire

Maxxis Minion FBR, 26x4.8", Snow tires

Front Hub

Aluminum alloy, disc brake, 12G 36H, ID15x150mm

Rear Hub

Aluminum alloy, disc brake, 12G 36H, ID12*197mm

Spoke

Black stainless, 12G, 258mm

Drivetrain

Shifter

SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™

Rear Derailleur

SRAM RD-X5, 9 speed, EXACT ACTUATION™

Cassette

SRAM CS-PG-950, 9 speed

Crank arm

BAFANG 170mm length

Chainring

BAFANG MM G520, 40T

Chain

KMC E10S for e-bikes

Pedal

Aluminum alloy

Components

Saddle

VELO, boron steel, 160mm width

Seat Post

Aluminum alloy, Ø31.6*264mm

Stem

Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm

Handlebar

Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm

Grips

VELO, trail grip

Brakes

TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor

Brake rotor

TEKTRO HD-E730, 3T, 203x2mm

Kickstand

Side Kickstand

Weight

Weight Limit

300 lbs

Net Weight

82.7 lbs

Gross Weight

105.2 lbs

Size

Bike Size

82.84 x 30.9 x 45.79 in

Box Dimension

69.7 x 33.5 x 11.6 in
